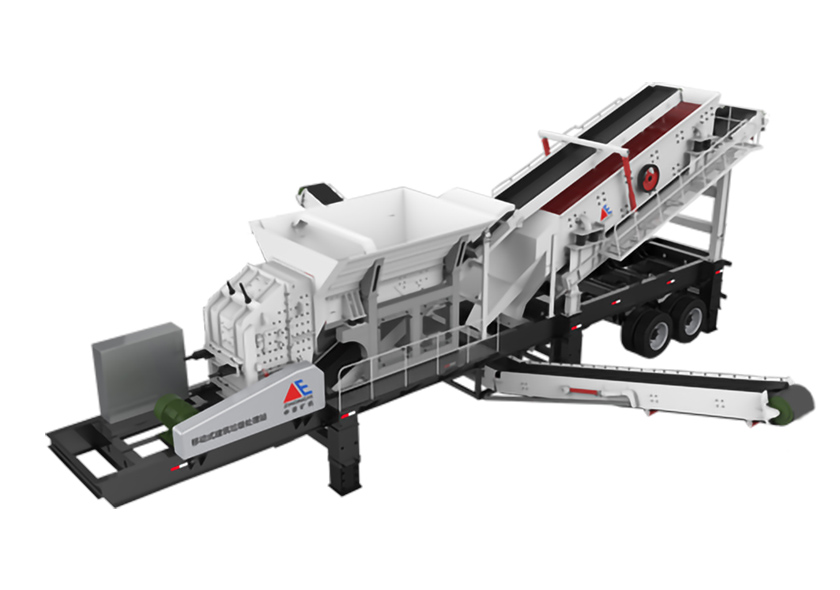

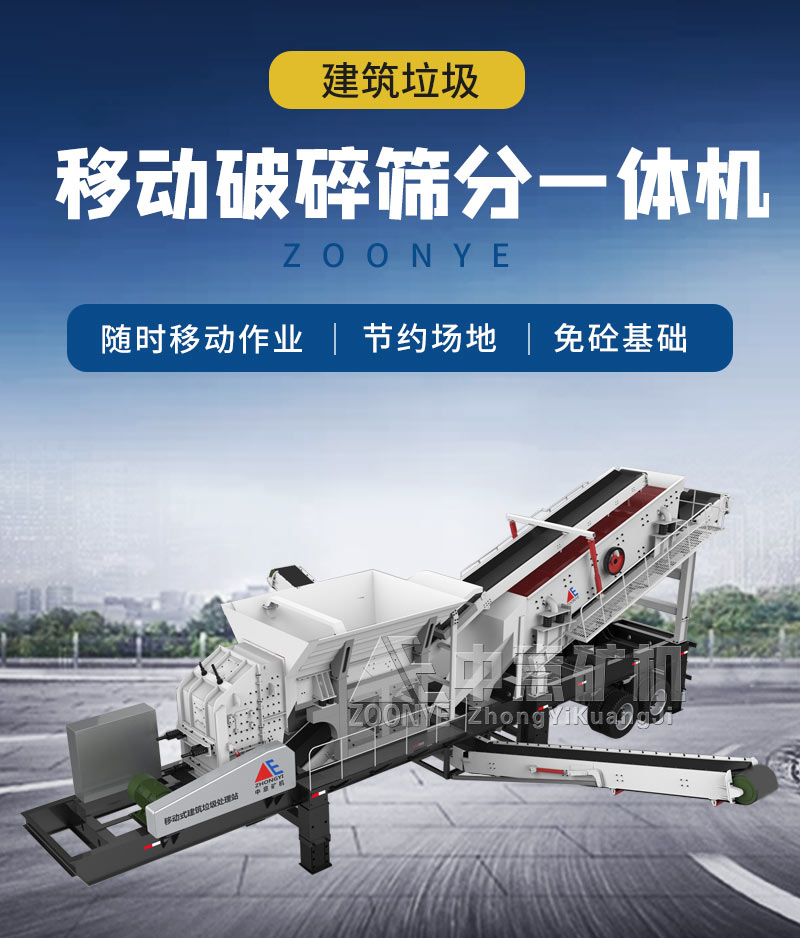

Mobile construction solid waste recycling equipment

This mobile construction solid waste recycling equipment of Zhongyi Mining Machinery installs the construction waste crusher and screening machine on a trailer, solving the problem of inconvenience in moving the traditional production line after being fixed, and solving the two processes of crushing and screening at the same time. It is a An all-in-one screening and fine crushing machine. The entire set of equipment has excellent appearance and overall structural quality. Compared with the previous mobile construction waste treatment equipment, the entire system is equipped with new host equipment, with full speed and power, and the project operation production capacity is more stable and reliable; it also takes into account the design of a semi-mobile production line Concept, equipped with a sled-type automatic lifting foundation, it not only has quick transition and convenient installation, but also can be used as a fixed line after the mode is switched. It is an ideal choice for solid waste, cave slag treatment and small aggregate line investment!

Construction waste recycling value

In addition to crushing construction waste, this mobile construction waste crusher can also be used by various industries to complete crushing and screening operations at one time to produce the material particle size and output required by the user. The complete set of mobile construction waste treatment equipment mainly includes crushing and screening, iron remover, belt conveyor, etc. Each level of equipment can complete its different responsibilities and can crush medium and low hardness ores and rocks. The crushed products are cube-shaped, with low needle flake content and almost no internal cracks.

Mobile construction waste crushing station

Tire type construction waste crusher

Mobile Construction Waste Shredder

Vehicle-mounted construction solid waste recycling equipment

Mobile construction waste crushing equipment

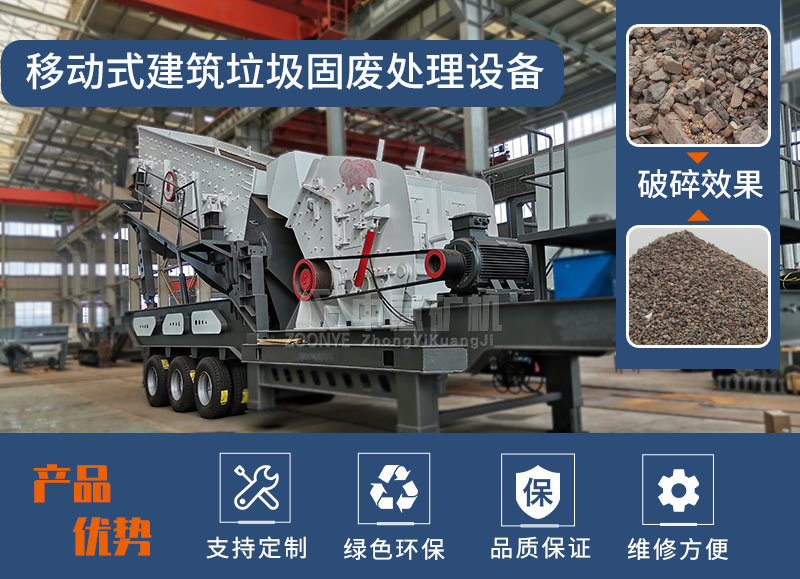

Advantages And Characteristics

1. Strong automation integration: This mobile crushing and screening equipment integrates crushing, screening, and transportation into one, and can complete the crushing, screening and other operations of materials at one time, saving time and effort.

2. No need for concrete foundation, no need for disassembly and assembly for delivery: The work site only needs to have the road surface leveled and compacted, and then power can be applied. There is no need to harden the cement foundation, which can significantly reduce the cost of project infrastructure materials and on-site accessory installation costs. The entire series can be shipped by land without disassembly and assembly (including shoes), and can be shipped by sea in containers.

3. Quickly enter the operating mode: The standard equipped shoes can be stowed away during transportation. After arriving at the work site, the electronically controlled hydraulic outriggers are extended to quickly enter the operating mode, and also have the function of quickly retracting for transition. The vehicle-mounted belt conveyor retracts and shrinks during transportation. After being deployed at the site, it immediately enters the feeding operation mode.

4. Innovative design, equipped with two main machines of crushing and screening on a mobile platform frame, with compact process structure, reducing project investment costs and operation consumption costs while realizing the tasks of large-capacity construction solid waste recycling projects , fully realize the cost-effectiveness of system project investment.

5. Simple operation and convenient maintenance: The rear frame of the crusher is opened hydraulically, which facilitates inspection and maintenance.

Working Principle

The main host equipment of the mobile construction waste solid waste recycling equipment is: GZT series feeder, PFW series crusher, 3YA series vibrating screen, iron remover, belt conveyor, hydraulic system, etc. The speed and power are full and strong, and the project operation is productive. Stronger capabilities, more stable and reliable. This equipment usually uses an external electric power source as its power source. The raw materials are evenly sent to the PFW series crusher by the GZT series feeder for crushing operations. The crushed materials are transported by the belt conveyor to the 3YA series vibrating screen for screening. The materials with the required particle size of the finished product are output from the finished product conveyor belt to become the finished product; the materials that do not meet the required particle size of the finished product are returned from the vibrating screen to the crusher for reprocessing, forming a closed circuit for multiple cycles. The granularity of finished products can be combined and graded according to user needs.
