ZSW series vibrating feeder is mainly used for continuous and uniform feeding of coarse crusher equipment, and can screen fine materials at the same time, which increases the functions of the crusher equipment. The body of the equipment adopts a vibrator device to ensure that the equipment can withstand the impact of cutting materials. In the entire production line process, 1 is conveyed to the feeder through the silo, and the raw material is evenly fed into the crusher equipment, thereby eliminating the crash site caused by uneven feeding. The crusher equipment has a sturdy grate bar and steel frame structure, which increases the life of the equipment and lays a solid foundation for longer-term operation in the future. This equipment is widely used in combined crushing and screening equipment in metallurgy, coal mines, mineral processing, building materials, chemicals, abrasives and other industries.

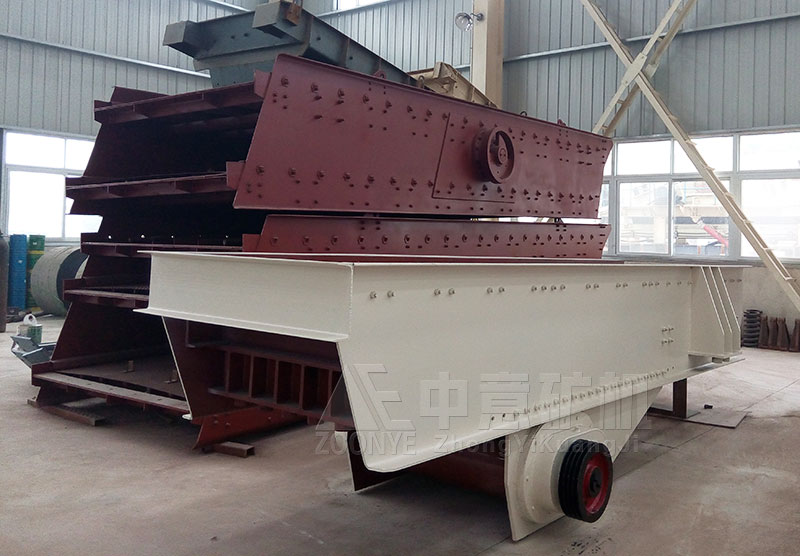

Real shots of feeder workshop

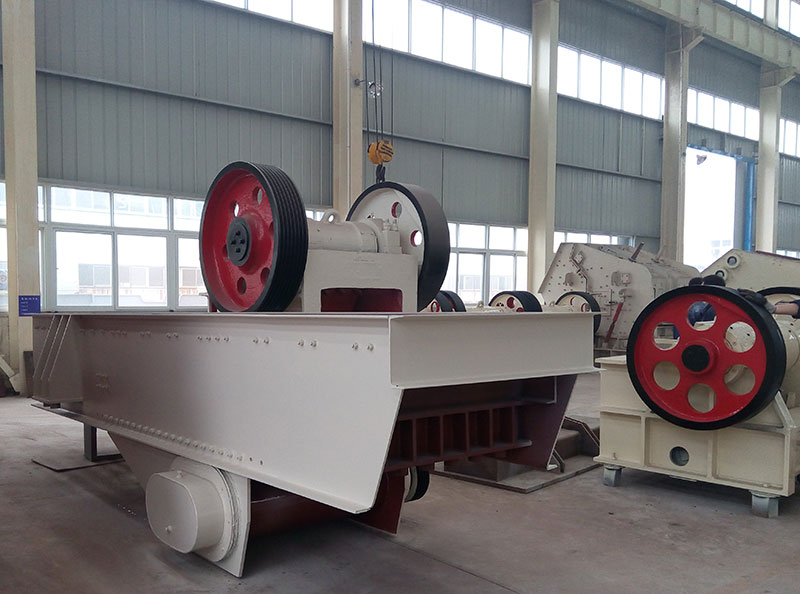

Feeder manufacturer

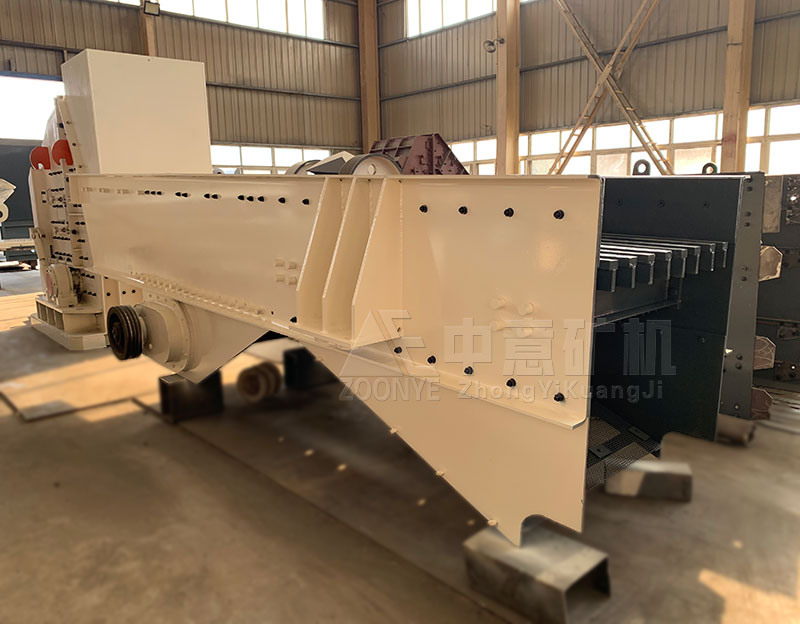

Large picture display of feeder

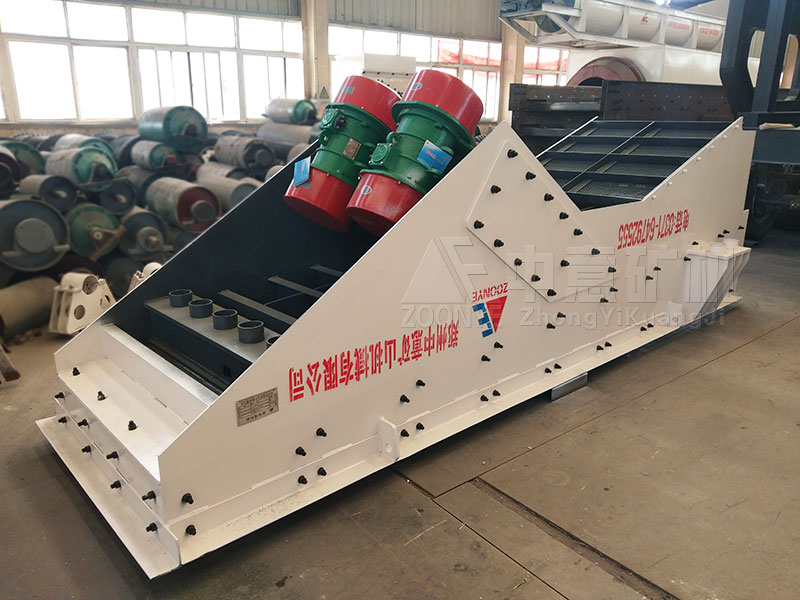

Vibrating feeder

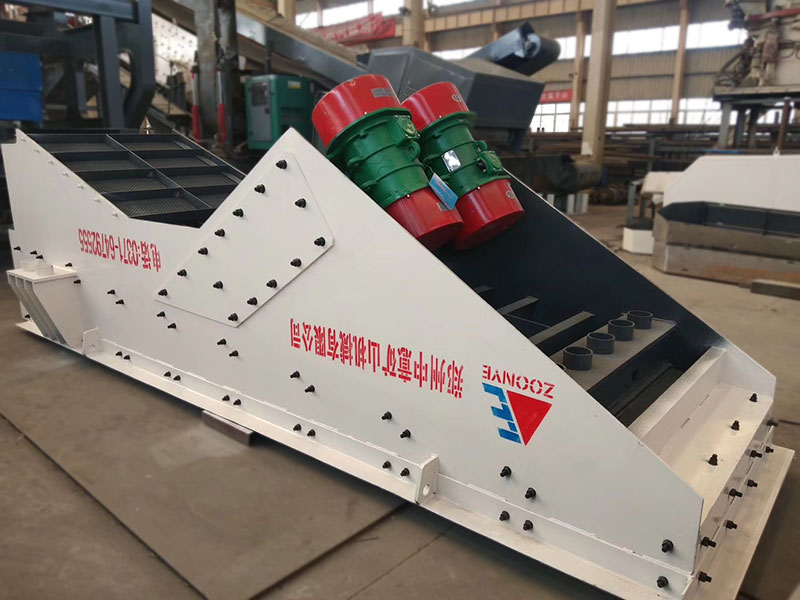

Feeder

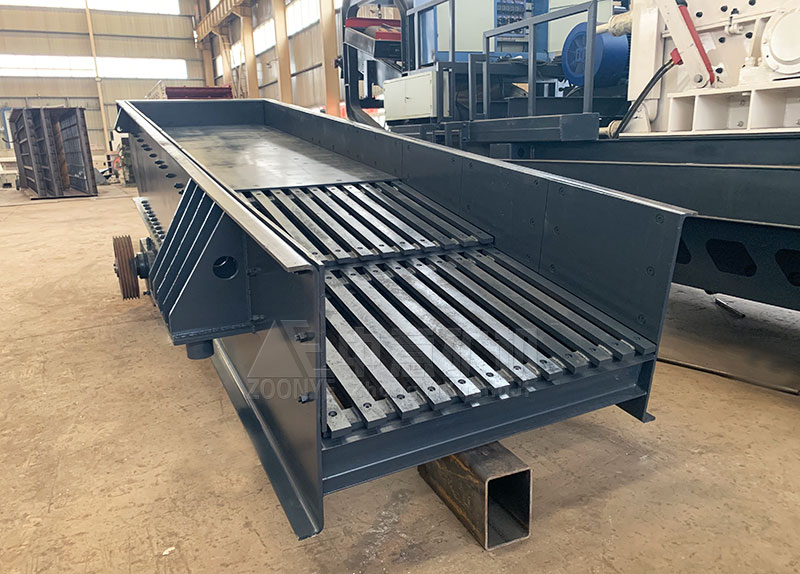

Zhongyi feeder

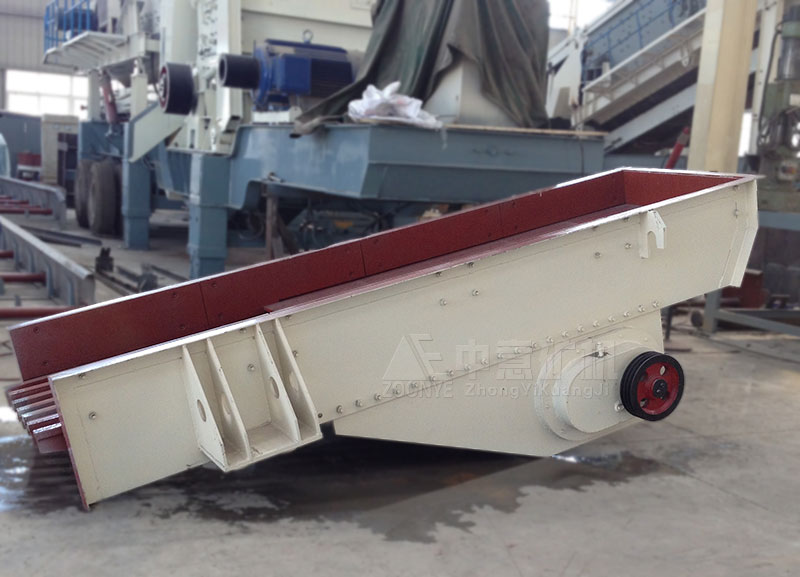

ZSW series vibrating feeder

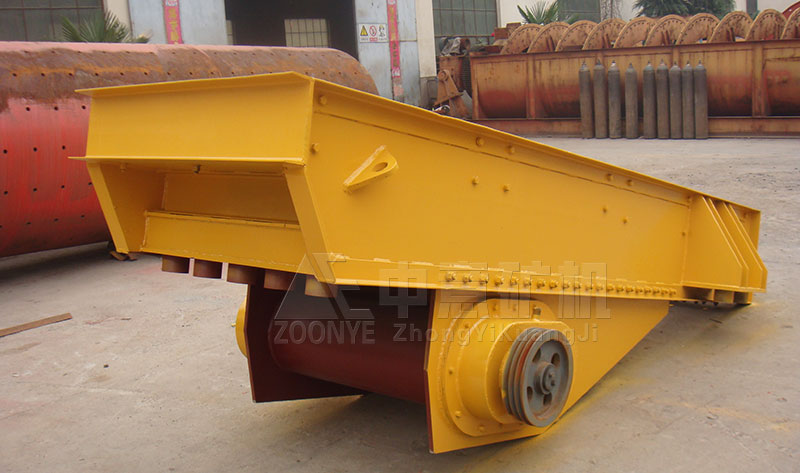

ZSW feeder

Advantages And Characteristics

1. Linear motion trajectory and stable vibration;

2. Process design can prevent material clogging;

3. The gap between the bars can be adjusted humanely.

Working Principle

ZSW series vibrating feeder equipment consists of a feeding trough, vibrator equipment, spring base, and transmission auxiliary device. The exciter of the tank vibrating feeder and equipment is the core. The exciter is composed of two main and negative (mutual) gears. A motor drives the triangular belt to drive the driving shaft, where it rotates in agreement with the positive and negative gears, making the equipment base device Reverse rotation causes the tank body to vibrate, causing the material to flow continuously to achieve the purpose of conveying the material.

Technical Parameter
