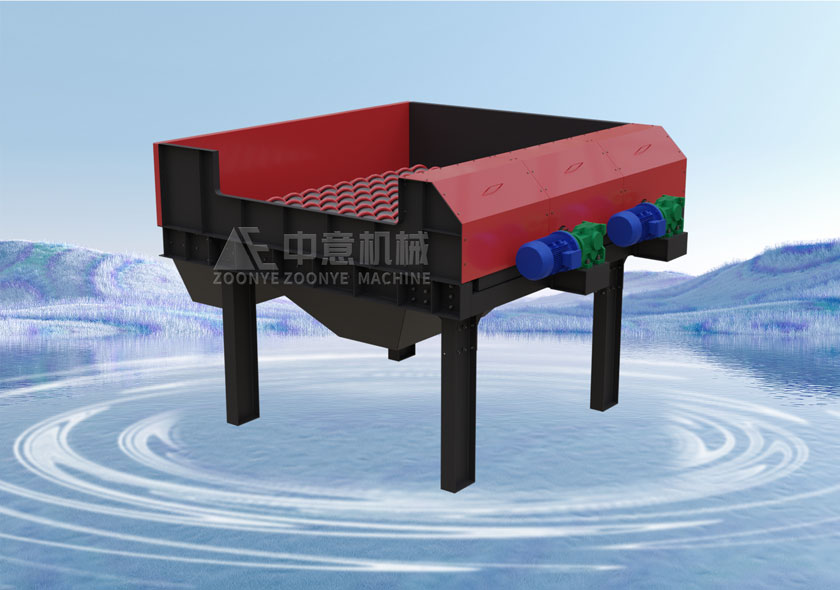

Spiral Screening Machine

The spiral screening machine is a machine specially designed for the sorting and processing of domestic waste. It can sort long hard materials such as wooden rods, iron pipes, etc. and small pieces of materials according to different specific gravity, hardness, size, and shape. Separate them separately to reduce the load on subsequent sorting equipment. The pitch and diameter determine the size of the screening, which can be selected from a range, and the operating speed of each spiral shaft can be automatically adjusted according to material composition, humidity, etc.

Features

1. The screen surface is sturdy and durable, and wet materials will not block the screen holes.

2. The equipment operates smoothly, without vibration and low noise;

3. The material advancement speed is fast, the processing capacity is larger than that of the drum screen, the floor space is smaller, and the screening efficiency is higher

4. The motor can be driven by variable frequency, which consumes less energy;

Real Shots From The Manufacturer

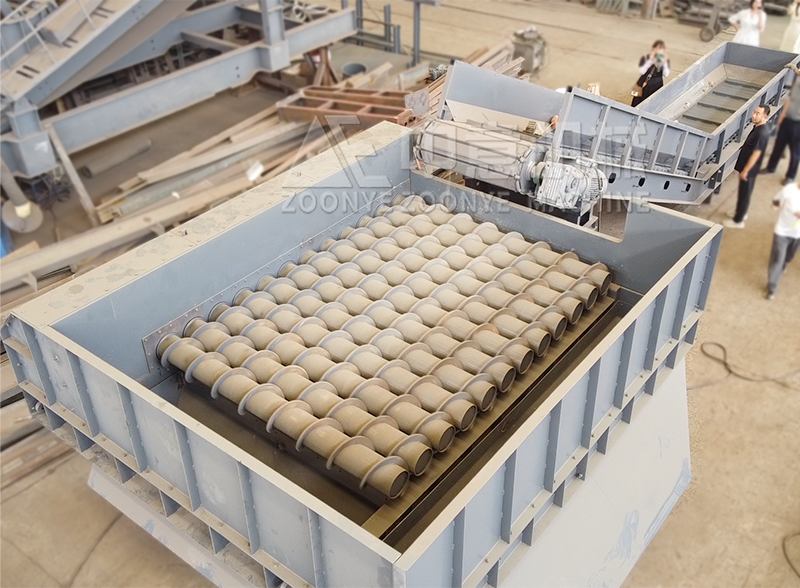

Spiral Screen Sorting Equipment

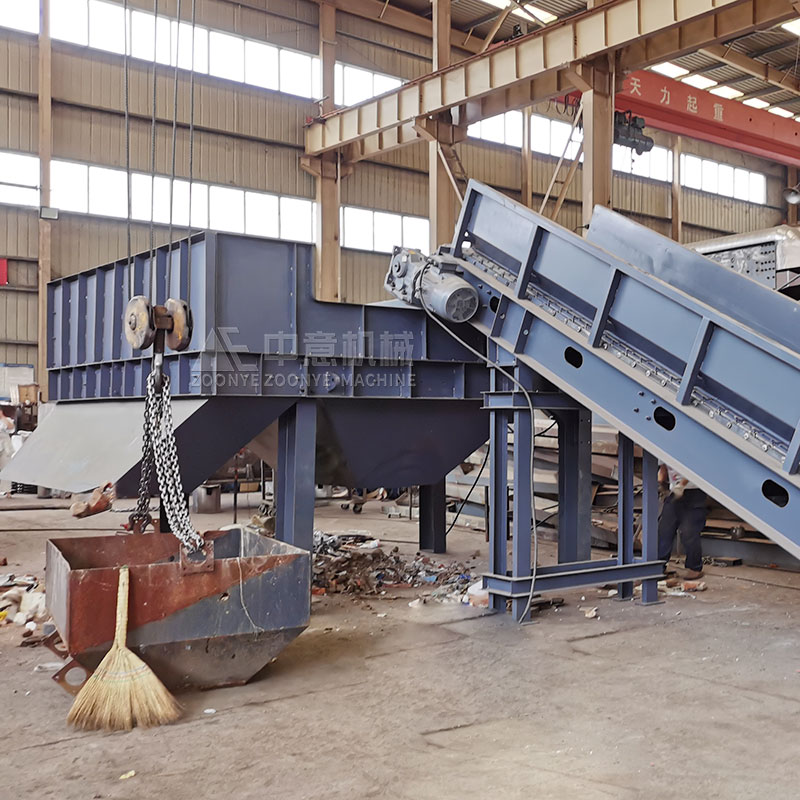

Customer On-site Test Machine With Materials

Working Principle

When the spiral screening machine equipment is started, the screw rotates, and the materials entering the screen surface are pushed by the threaded ribs on the screw, and pass through the screen holes designed between the threaded ribs or grooves and the threaded grooves or ribs on the adjacent screw. , to obtain products under the screen, large-grained materials are discharged from the upper part of the spiral surface, and small-grained materials are discharged from the lower part of the spiral surface, thereby achieving the functions of grouping and separation.

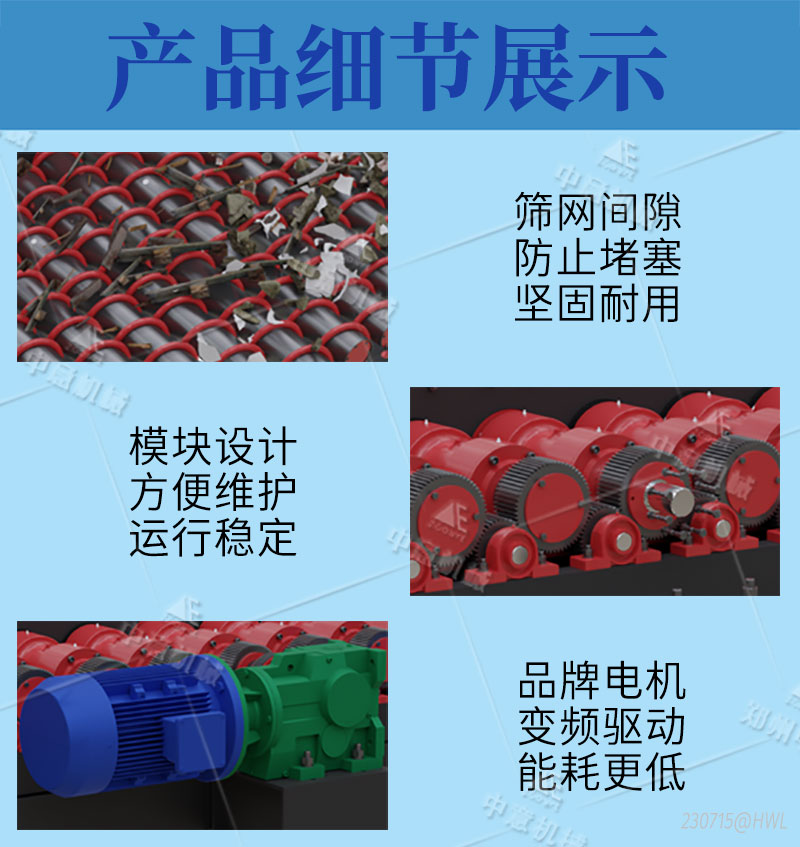

Product Details

Product Details
